The PP 100 gets the following
Benefits to your System: How does the permeatepump work?

The PP 100 Permeatepump is using the energy of the brine Water of your RO- system, to pump the permeate into your pressure Tank. It does not require electricity for that. It is just useing hydraulic energy that normaly goes to drain unused.

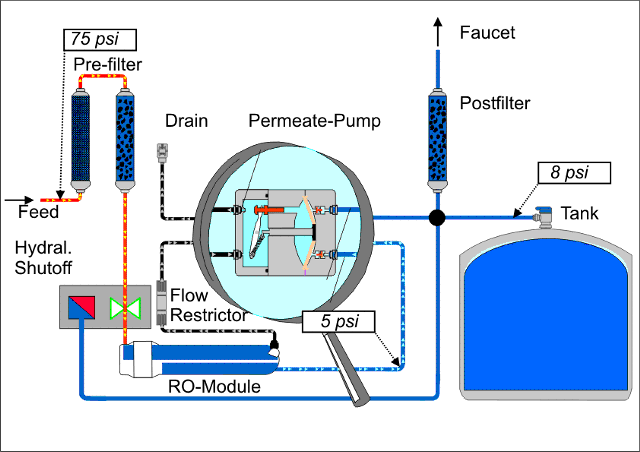

This way, it isolates your Tank from the membrane and lets your membrane perform like in an athmospheric tank system. Look at our Computer animation below. You can click on the image to enlarge it. If you click on the pump you get a detailed view on the pump only.

How do you install the permeatepump?
The permeatepump can be installed into almost every existing undercounter RO- system. The main thing is, that you install it  horizontal with both outlet ports in the highest position so that any air purges out automaticly.
